Roll-Belt™ Round Balers

FAST AND RELIABLE WRAPPING SYSTEMS

A dense bale requires a wrapping system capable of keeping it that way. Regardless of whether you equip your baler with a net and twine wrapping system or net only, you’ll get fast, reliable and tight wrapping. Balers with both systems give you the flexibility to choose your preferred tying method for a given crop, custom operations, or to save net when tying off a partial bale.

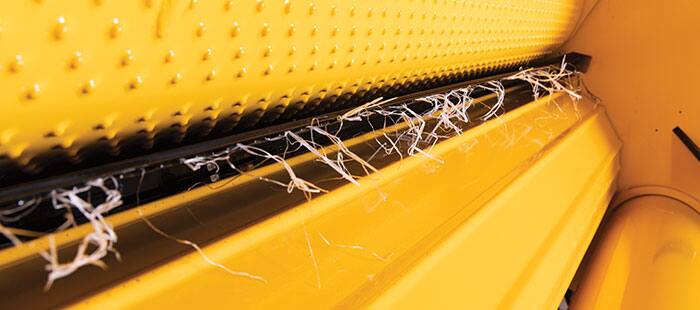

EDGEWRAP™ NET WRAP SYSTEM

The short, efficient net path into the chamber makes the EdgeWrap™ net wrapping system reliable and fast. As a result of a short path, six seconds* is all it takes to wrap a bale. To provide over-the-edge coverage even with standard width net, this system is wider than the chamber for enhanced bale protection and shape.

*2.5 wraps on a 70” diameter bale at PTO speed

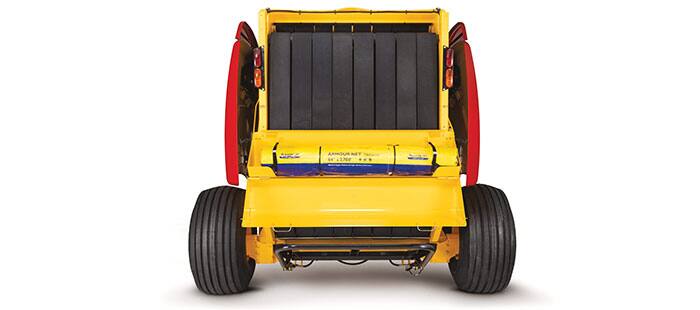

EASY FRONT-LOAD SYSTEM

The front-load system makes it easy to load an active roll of net and provides you with peace of mind knowing that each bale has been properly wrapped before ejection. The net tube is designed to pivot down and forward so that the roll is at the perfect height for loading. A net stuffer tool is found below the system along with a helpful decal that illustrates how to load the roll. Two spare rolls of net can be stored on the baler for your added convenience.

WRAPPING CYCLE

1 – The wrapping cycle automatically begins when the bale reaches full size.
2 – Net wrap is applied to the bale when the duckbill pivots into the chamber.
3 – Once the net wrap is applied the duckbill returns to the home position.
4 – The net knife cuts upward, leaving a clean-cut end.

EASY THREADING

Six active balls of twine can be loaded on the Roll-Belt™ 450 Utility PLUS, Roll-Belt 450s and Roll-Belt 460s, while eight active balls can be used on Roll-Belt 560s by removing the dividers.

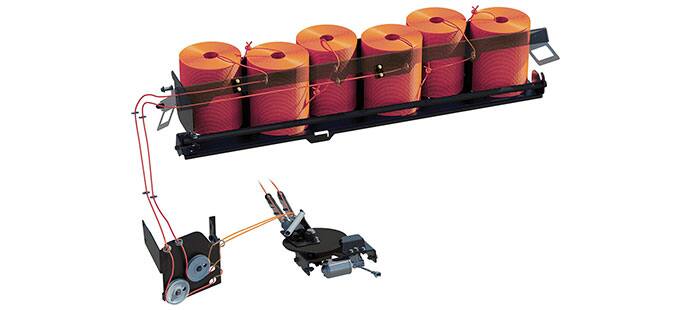

SMART TWINE DESIGN

The twine mechanism features dual tubes that pivot on a single mount to feed twine into the bale chamber. A low-amperage motor provides smooth actuation and dynamic twine spacing changes.
